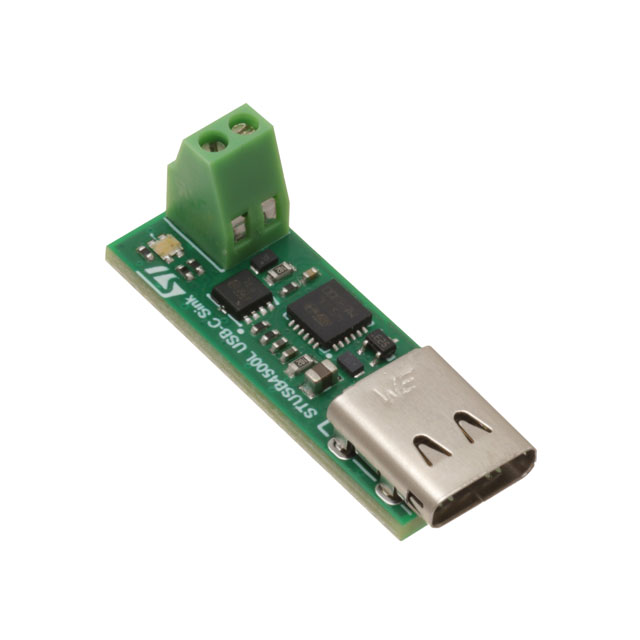

The EVAL-SCS002V1 shows minimum USB-C sink implementation. It can be uses as a small footprint reference design for fast migration of any USB mini-B, micro-B or STD-B application to USB-C.
It is based on the STUSB4500L USB controller IC and is certified as “Power Sinking Device” (TID #1455)
A status LED indicates the current output on the VSNK:
Blue = Defalut Source
Blue + Red = Source 1.5 Amp
Blue + Green = Source 3 Amp
| Manufacturer | STMicroelectronics |
|---|---|
| Category | Wired Communication |
| Sub-Category | Interface Solutions |
| Eval Board Part Number | 497-EVAL-SCS002V1-ND |
| Eval Board Supplier | STMicroelectronics |
| Eval Board |
Normally In Stock
|
| Purpose |
USB Type-C Sink Port
|
| Component Count + Extras |
19 + 1
|
| Features |
Dead Battery Support
GUI / Design Software I²C Interface Short Circuit Protection VBUS powered Voltage Monitoring |
| Data Rate (Max) |
- Not Given
|
| Design Author |
STMicroelectronics
|
| Main I.C. Base Part |
STUSB4500L
|
| Date Created By Author | 2019-12 |
| Date Added To Library | 2020-06 |
