CFast-Slide7

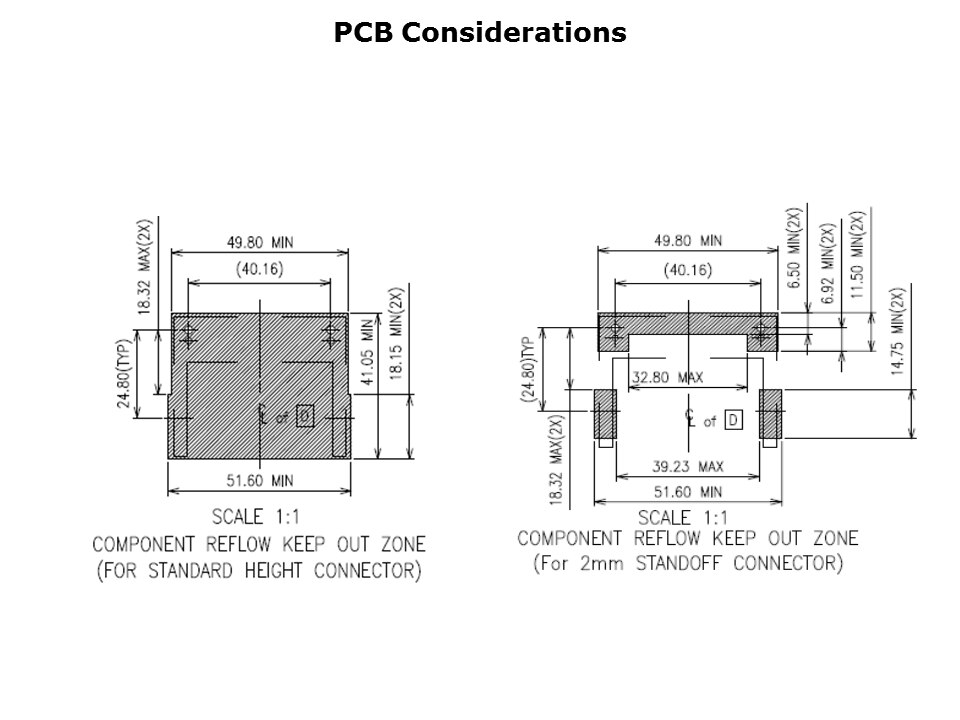

If the 3M header is selected with the stand-off option, the area on the PCB directly below the inserted card may be populated with components. However, if using the standard height connector, the areas directly beneath the connector body must be kept free for reflow soldering, as shown on the slide here.
